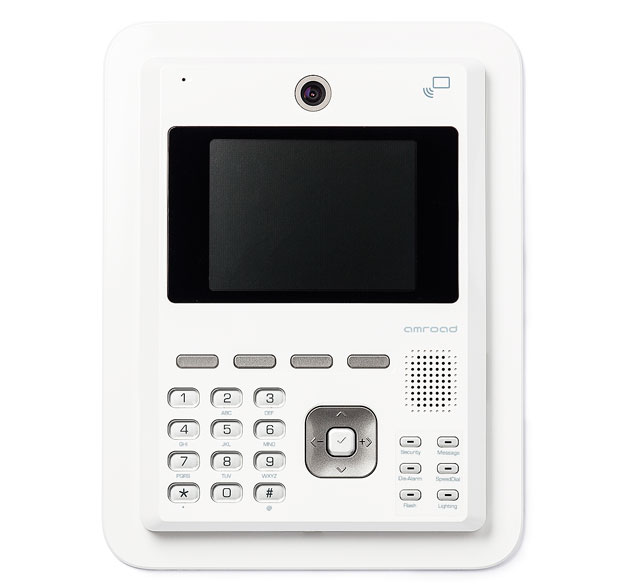

Amroad ID5101
Flush and surface mounting
The Flush-Mounting Kit for Amroad ID5101 allows a rapid and simple flush mounting of the device.
When ordering, please indicate the optional Flush-Mounting Kit for Amroad ID5101 (Product NO. IDAS9130).
Regardless of the buildings current condition, our two installation methods allow a cost and time efficient mounting of the device.
kit Product NO
IDAS9130
included in the kit
1 × Plastic Frame
1 × Metal Wallbox
1 × Metal Bracket
4 × Screws
dimensions
Plastic frame:
W 215 × H 280 × D 26 mm
(protruding 7 mm when mounted)
Wall box:
W 191 × H 257 × D 54 mm
